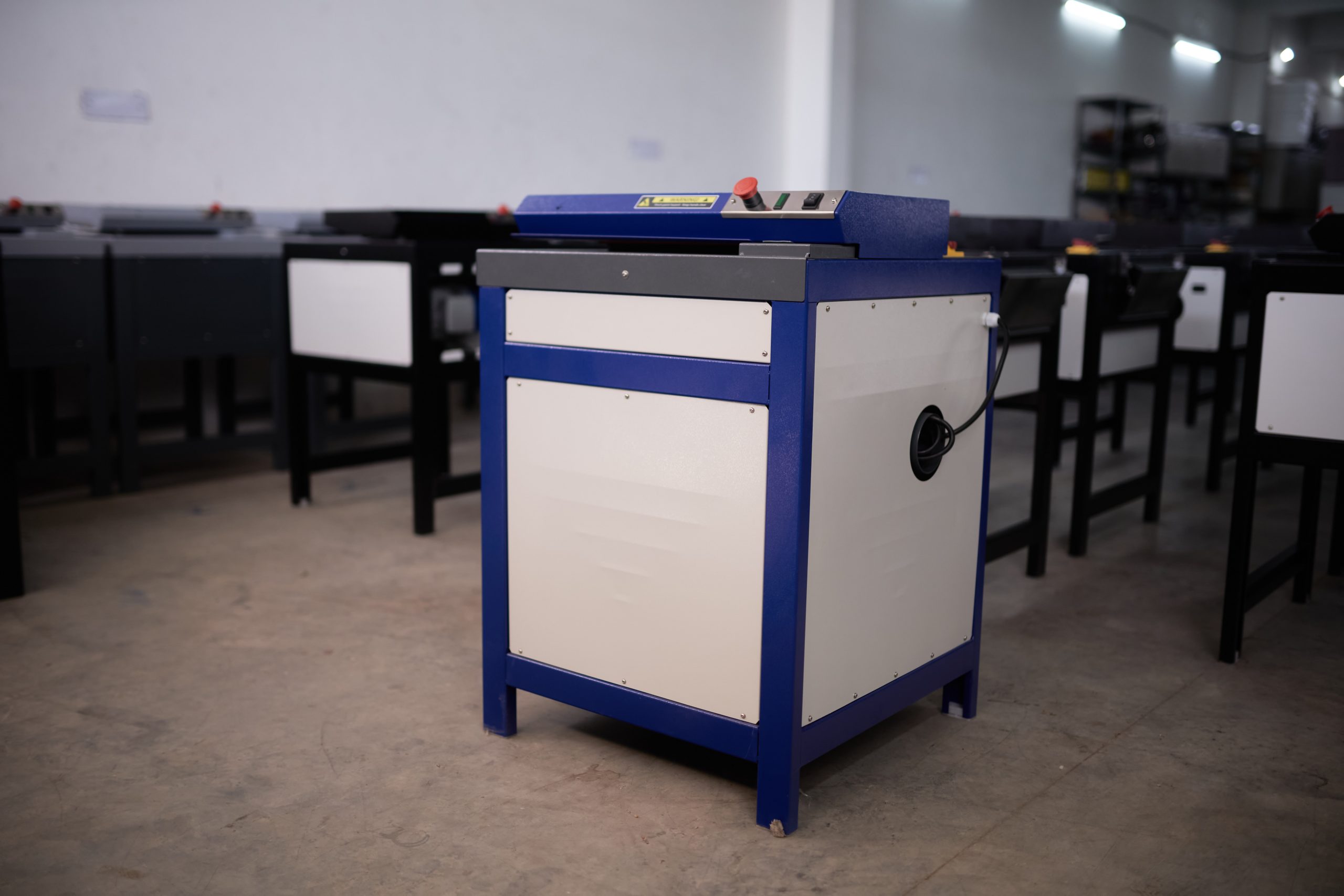

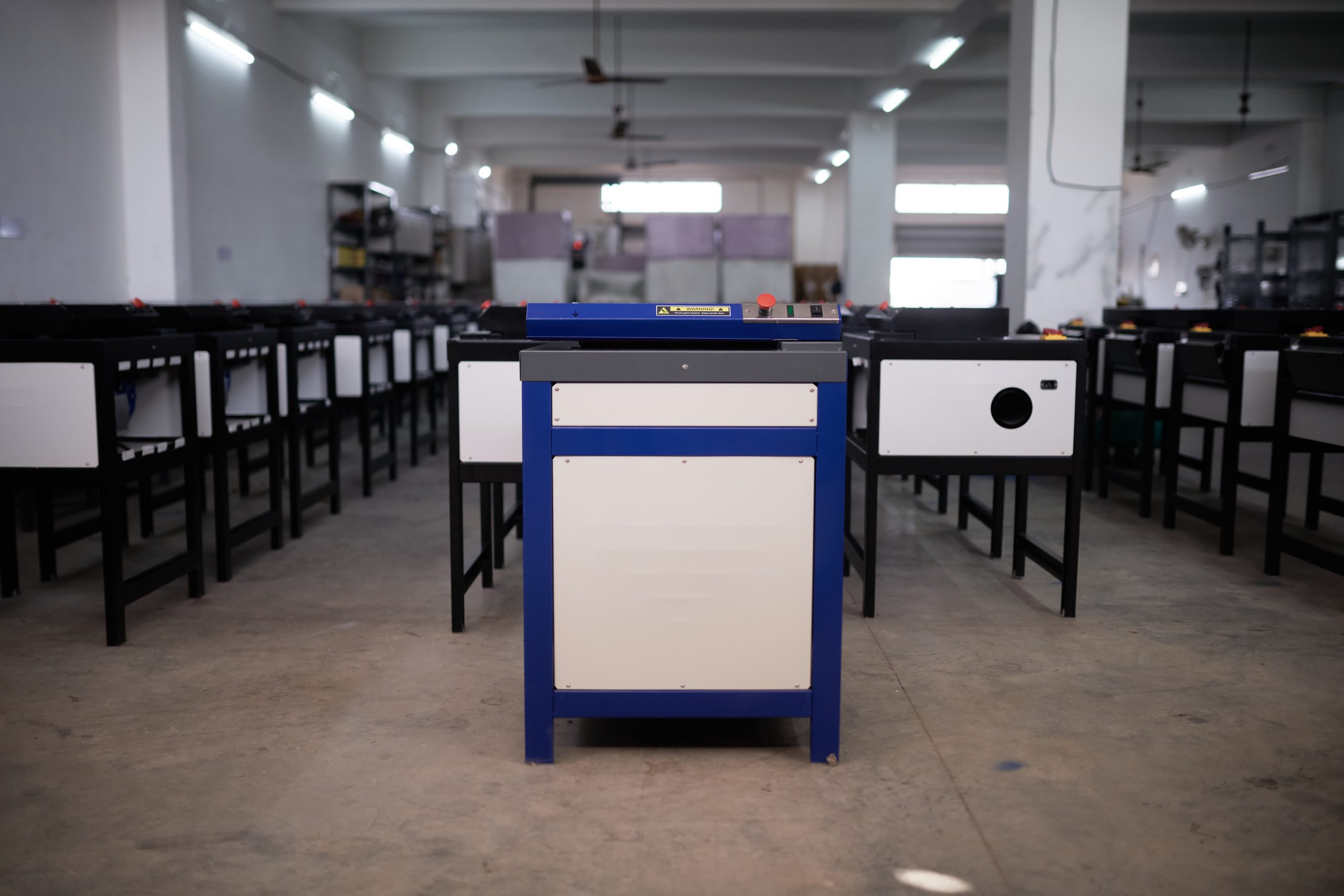

Cardboard shredder machine GREE ES 422mm

The cardboard shredder machine GREE ES 422mm is an innovative solution for turning everyday waste paper, cardboard, and corrugated board into highly effective void fill. This ready-to-use machine features a plug-and-play system that can be used immediately, saving cable costs and setup time in different locations where it is established. The ES 422mm model is a GREE brand product that is globally recognized as the very best in packaging equipment innovation and engineering available to the packaging professional.

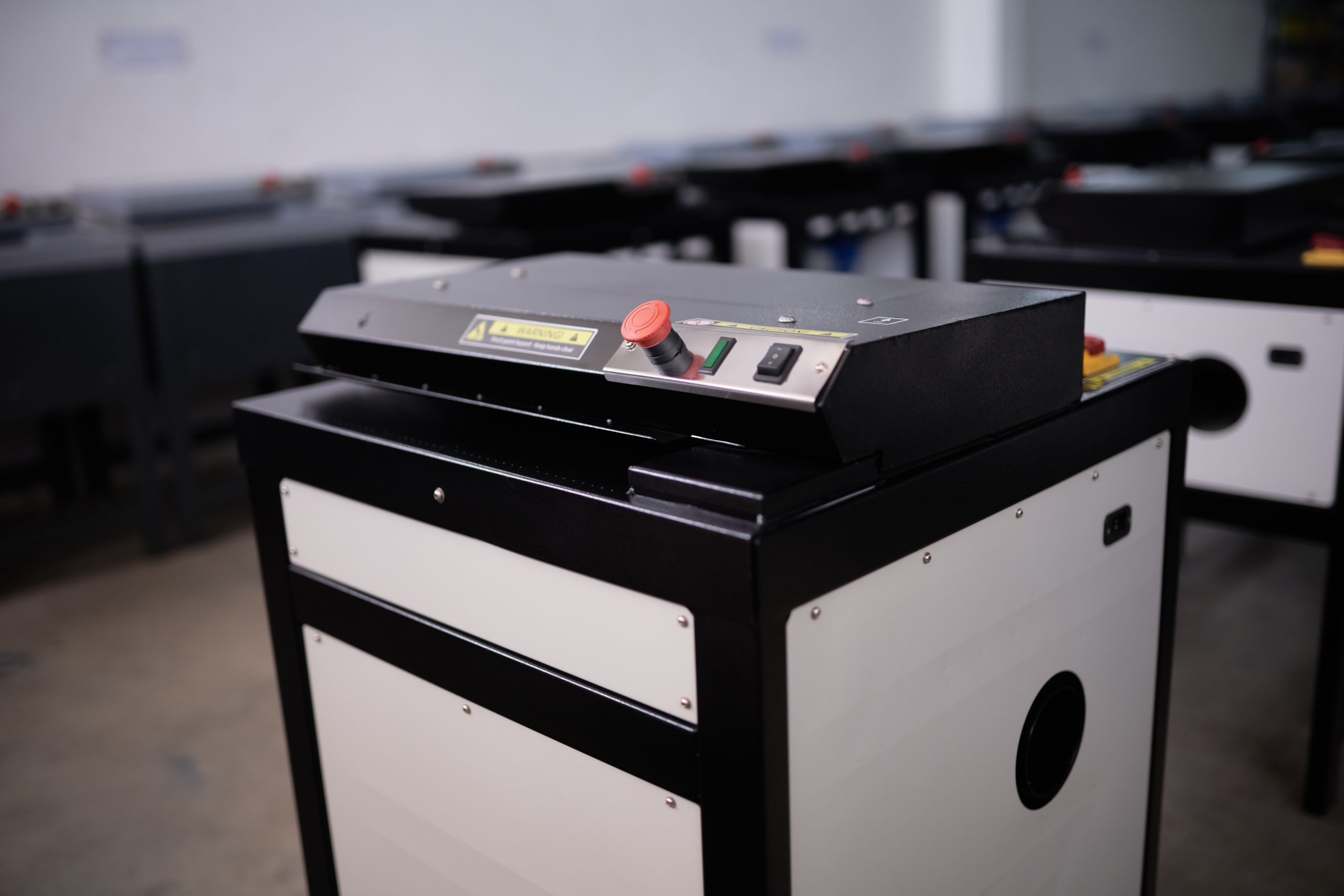

The machine is equipped with a special, custom-designed, aerospace-grade steel shaft with dual action that trims and converts cardboard into void fill or flexible material. The user-friendly machine has simple Start, Stop, Reverse, and Emergency functions to provide safety and efficiency at the job site. The high efficiency of the drive enables a particularly sustainable operation of the device, and the soft start means less component wear and quieter operation.

The ES version produces flexible matting. The machine can be fitted with a dust reduction unit, which makes it an ideal choice for those who are environmentally conscious. The machine is designed to cut up to 420mm wide and up to 18mm thick, producing up to 6.0 cubic m/hr of void fill with an unlimited run time.

The dimensions of the machine are W660mm x D660mm x H1060mm, and it weighs 120kg with a footprint of 0.5 square meters. The machine requires a power supply of 230 or 240 volts and can be connected using a 13-amp plug. The machine is capable of processing cardboard or paper of at least 60 g/m2, and it comes with CE, ISO, and EcoFriendly certificates.

The machine has a single-pass operation and an emergency stop switch for added safety. The custom steel shaft ensures the machine’s durability and longevity, and it comes with a 30% energy savings feature with an inverter drive. The machine is designed to meet global standards for packaging equipment, making it an ideal choice for businesses that value efficiency and sustainability.

Operating the machine is simple and straightforward. First, connect the machine to a 230 or 240-volt power supply using a 13-amp plug. Then, pull out the red emergency stop knob and turn the black rotary switch to the right. Depress the GREEN start button, and the operating lamp illuminates. Feed the corrugated board, with a maximum thickness of 18 mm into the opening at the front of the machine. Any width of board can be processed, as the integral cutter will trim off any excess board.

If there are staples in the carton, present the carton to the machine so the staples are on the left-hand side. Process the board as normal, making sure the last piece with the staples in is kept to the left of the integral cutter. This will leave you with just a narrow strip of board with the staples left in it. Discard it safely.

At the rear of the machine is a spring-loaded stainless steel flap designed to compress the shredded board into a more flexible cushioning material. Do not pull up the flap to remove the shredded board, as the processed board will be forced out as more board is fed in from the front. If flat material is required, remove two L-shaped spring legs from the holes in the compactor flap. The flap now will move freely and present no restriction to the shredded board.

Overheating the motor will engage the thermal cut-out. In this event, wait 3 minutes and press the button to restart the operation. Should a jam occur, turn the rotary switch fully to the left, which reverses the motor-enabling material.

Cardboard shredder machine GREE ES 422mm video

Top 6 features of the cardboard shredder (GREE ES 422):

Here are eight benefits of a cardboard shredder, the GREE ES 422mm:

1. Cost-effective: By using waste cardboard to create packaging material, a cardboard shredder can help reduce the cost of buying packaging material.

2. Eco-friendly: shredding cardboard helps recycle and reuse materials, reducing the environmental impact of waste.

3. Space-saving: By shredding and converting cardboard into packaging material, you can reduce the amount of space needed to store packaging material.

4. Efficient: A cardboard shredder can quickly and easily create packaging material, making it an efficient way to meet packaging needs.

5. Customizable: A cardboard shredder allows you to create custom-sized packaging material to meet specific needs, reducing the need for excess material.

6. Versatile: A cardboard shredder can handle a range of materials beyond just cardboard, including paper and corrugated board.

7. Safe: Most cardboard shredders come with safety features such as emergency stops and reverse functions to protect users.

8. Convenient: Many cardboard shredders are designed to be compact and easy to use, making them a convenient addition to any workspace.

How to use the cardboard shredder (GREE ES 422):

1.

   Connect the shredder to a 230 or 240-volt supply using a 13-amp plug.

2. Pull out the RED emergency stop knob.
3. Turn the black rotary switch to the right and depress the green start button, and the operating lamp illuminates.
4. Feed the corrugated board, with a maximum thickness of 20mm, into the opening at the front of the machine. Any width of board can be processed, as the integral cutter will trim off any excess board. This, in turn, can be re-fed into the machine until all the board is used up.
5. If there are staples in the cardboard, then present the cardboard to the machine so the staples are on the left-hand side. Process the board as normal, but make sure the last piece with the staples is kept to the left of the integral cutter. This will leave you with a narrow strip of the board with staples left in it. Discard this safely.
6. At the rear of the machine is a spring-loaded stainless steel flap. This compactor flap is designed to compress the shredded board into a more flexible cushioning material. Do not pull up the flap to remove the shredded board, as the processed board will be forced out as more board is fed in from the front.
7. If flat material is required, remove two L-shaped spring legs from the holes in the compactor flap. The flap now will move freely and present no restriction to the shredded board.
8. Overheating the motor will engage the thermal cut-out. In this event, wait 3 minutes and press the button to restart the operation.
9. Should a jam occur, turn the rotary switch fully to the left, which reverses the motor, enabling the material to be removed.
10. Turning the rotary switch to the middle position switches the machine off.
11. DO NOT leave the machine running unattended.
12. The runtime and board thickness are dependent on the density of the product.
