Tabletop auto labeling machine T160LB – 30-80pcs/min
Oorspronkelijke prijs was: 3,536€.2,899€Huidige prijs is: 2,899€.
- Tabletop auto labeling machine T160LB designed for flat surfaces
- Labeling speed adjustable from 30 to 80 pcs per minute
- Label size supported length 6–250 mm width 20–160 mm
- Product size supported length 40–300 mm width 40–200 mm
- Product height supported from 0.2 mm up to 100 mm
- Power supply compatible 110V or 220V at 50 or 60Hz
- Power consumption efficient operation with approximately 765 watts usage
- Driving motor equipped with stable and precise step motor system
- Label roll diameter maximum outer 260 mm minimum inner 75 mm
- Labeling accuracy maintained at ±1 mm under stable conditions
- Machine size compact dimensions 1100 × 1000 × 800 mm
- Fast Delivery – One Year Warranty
- Beschrijving
- Attachment
Beschrijving

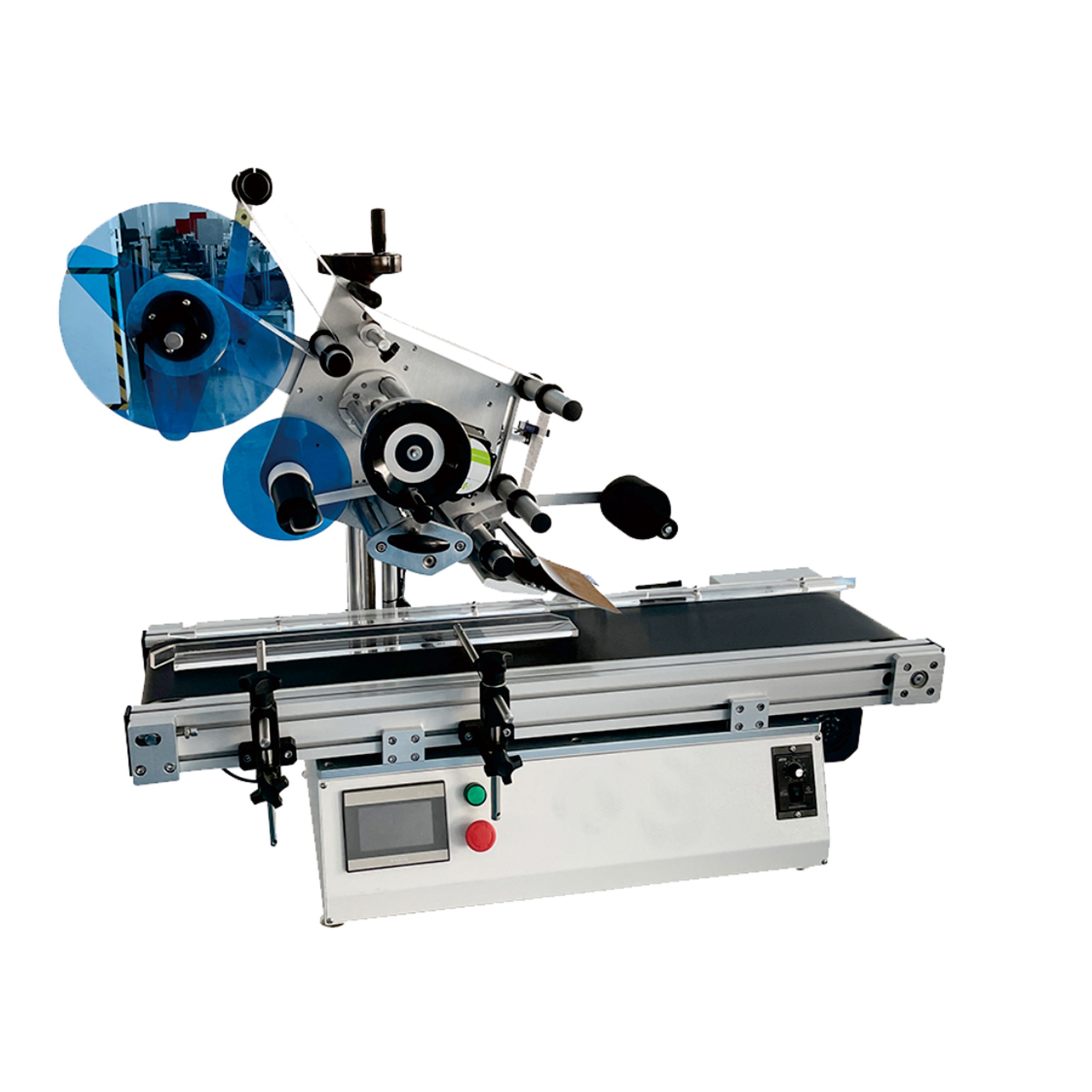

Tabletop auto labeling machine T160LB
The Tabletop auto labeling machine T160LB is a professional equipment solution developed for industrial applications where high precision and consistency in labeling are essential. This machine is designed to handle flat product surfaces and provides reliable performance for companies requiring systematic product labeling across multiple batches. The labeling speed ranges from 30 to 80 pieces per minute, depending on the dimensions of the product and the applied label size. It supports label sizes between 6 to 250 mm in length and 20 to 160 mm in width. The device accommodates product sizes ranging from 40 to 300 mm in length, 40 to 200 mm in width, and 0.2 to 100 mm in height. The core design of this machine ensures labeling accuracy and consistency, making it suitable for companies that require compliance with industrial standards in packaging and identification processes. The system is built with stable components to maintain durability and reliability during extended operation, minimizing the risk of downtime and maximizing operational efficiency.
Tabletop auto labeling machine T160LB video
FAQ of Tabletop auto labeling machine T160LB
1. What product shapes and surfaces are suitable?
Flat or nearly flat surfaces are ideal for consistent label adhesion and positioning. Typical applications include cartons, pouches, trays, flat bottles, and rigid components with a uniform top face. For the Tabletop auto labeling machine T160LB, suitable product dimensions are Length 40–300 mm, Width 40–200 mm, and Height 0.2–100 mm, ensuring stable transport and reliable label application within these ranges.
2. What throughput do I need for my line?
Define your required labeled-units-per-hour from real production data (shift targets, changeovers, rejects). The T160LB operates at 30–80 pcs/min, allowing planners to budget between 1,800 and 4,800 labeled pieces per hour under steady-state conditions. Select a capacity with 15–25% headroom to accommodate ramp-up, operator interventions, and label roll changes without risking bottlenecks.
3. What label sizes are supported?
Confirm the full label size envelope against the machine’s specification. The T160LB supports label sizes of Length 6–250 mm and Width 20–160 mm. Validate your smallest and largest SKUs (including any planned redesigns) against these limits to avoid retooling or parallel equipment for outliers.
4. Will my product dimensions fit without custom fixtures?
Compare your product length, width, and height to the machine’s admissible window. The T160LB supports products within L 40–300 mm, W 40–200 mm, H 0.2–100 mm. Parts outside this range may require custom guides or a different platform. Verify tolerance bands (warpage, flatness) to ensure stable transport and repeatable label placement.
5. How do I ensure label placement accuracy and consistency?
Accuracy depends on stable product handling, correct sensor positioning, and proper label threading/tension. Implement clear work instructions for threading, set product guides to eliminate lateral play, and run short validation batches whenever changing label size or product. Maintain clean rollers and sensors to prevent drift and mis-triggers.
6. What changeover steps are required between SKUs?
Typical changeovers include swapping label rolls as needed, adjusting guide rails to product width, setting label position via the head’s vertical/front-back adjustments, and confirming sensor triggers on the new label gap/mark. Document target settings per SKU and use a checklist to keep changeovers predictable and under a defined time standard.
7. What are the installation and operating environment requirements?
Install on a rigid, level surface with adequate clearance for loading products and changing label rolls. Operate in a clean, dry area with stable temperature and minimal vibration. Provide standard AC power per local regulations and ensure proper grounding for safety and signal stability. Keep liquids, dust, and corrosives away from transport and sensor areas.
8. What routine maintenance and consumables should I plan for?
Plan periodic cleaning of transport rollers, label path, and sensors; remove adhesive buildup to prevent slippage and misfeeds. Inspect belts and wear components on a schedule aligned with run-hours. Primary consumables are pressure-sensitive labels compatible with your substrate. Maintain spare label rolls and basic wear parts to minimize downtime.
9. How do I validate labels, compliance, and traceability?
Confirm label material compatibility with your product surface and storage conditions. Validate readability (text, barcodes, regulatory marks) at line speed and downstream checkpoints. Establish a first-article approval per shift/SKU, record settings, and include periodic sampling during production to demonstrate ongoing compliance and traceability.
10. What support, training, and documentation are required?
Ensure operators receive initial training covering threading, sensor checks, and routine adjustments. Provide SOPs for start-up, changeover, cleaning, and troubleshooting. Keep the user manual accessible on the line and define escalation paths for maintenance support. Align spare parts and label inventory with your production plan to avoid unplanned stoppages.
Specifications of Tabletop auto labeling machine T160LB
| Model | T160LB |
| Labeling Speed | 30–80 pcs/min |
| Label Size | Length 6–250 mm, Width 20–160 mm |
| Suitable Product Size | Length 40–300 mm, Width 40–200 mm, Height 0.2–100 mm |
| Power Supply | 110V/220V, 50/60Hz |
| Power Consumption | Approx. 765W |
| Driving Motor | Step Motor |
| Label Roll Diameter | Outer 260 mm, Inner 75 mm |
| Labeling Accuracy | ±1 mm |
| Machine Size | 1100 × 1000 × 800 mm |
| Machine Weight | 150 kg |
ROI of Tabletop auto labeling machine T160LB
The auto labeling machine represents a clear return on investment for enterprises that process medium to high product volumes. By integrating this machine into the production workflow, companies reduce dependency on manual labor, which in turn minimizes labeling errors and ensures compliance with packaging standards. The system’s consistent labeling accuracy of ±1 mm ensures that quality control costs are reduced, while the increased labeling speed supports faster throughput and enables higher daily production capacity. For companies with recurring production runs, automation reduces overall labor expenses, improves operational efficiency, and decreases bottlenecks during packaging. The use of durable components further contributes to lower maintenance costs over time, allowing the business to allocate resources more effectively. As labeling is a mandatory requirement in most regulated industries, the implementation of this system helps ensure compliance while achieving measurable cost savings. The result is improved productivity, reduced downtime, and a faster payback period compared to manual processes.
Key Features and Benefits of Tabletop auto labeling machine T160LB
The auto labeling machine offers a set of technical and operational benefits designed for professional use. Its step motor drive ensures stable performance and precise control over label application, while the automatic detection sensors contribute to reliable product recognition and accurate label placement. The compact tabletop design allows the machine to be integrated into production lines with limited space, while still maintaining high throughput. Companies benefit from the wide label size compatibility, which allows one system to cover different product lines. The high-quality mechanical structure reduces wear and extends equipment lifespan, supporting long-term use. In addition, the machine is designed for user-friendly adjustment of label positioning, minimizing downtime when switching between products. With its precise labeling and consistent performance, enterprises achieve standardized product presentation, which is crucial in logistics, warehousing, and distribution environments. Overall, the equipment enhances both efficiency and compliance while providing operational stability.
How to use Tabletop auto labeling machine T160LB
The auto labeling machine has been developed for straightforward integration into production workflows. To use the device, the operator first places the roll of labels into the feeding mechanism and threads it through the designated rollers to the peeling plate. Products are placed on the conveyor system, where the sensor detects the object and sends the signal to the control unit. The labeling head automatically applies the label, followed by the pressing mechanism that ensures adhesion to the surface. Once labeled, the products are collected from the output side. The system provides both manual and automatic operating modes, giving companies flexibility depending on production volumes. Adjustment of product guides and label positioning can be performed using the dedicated mechanical handles. Regular monitoring through the control interface allows operators to set production targets, control speed, and maintain labeling accuracy. With step-by-step integration, the process remains efficient, reliable, and aligned with industrial standards.
Where to use Tabletop auto labeling machine T160LB
The auto labeling machine is intended for use in manufacturing, packaging, and logistics environments where flat product surfaces require precise labeling. It is suitable for industries such as electronics, cosmetics, pharmaceuticals, and food processing, where accurate labeling is mandatory for compliance and traceability. Enterprises handling batch production or multi-product labeling will benefit from its flexibility in handling a wide range of product dimensions. The machine is also appropriate for contract packagers who must provide reliable labeling across different customer product lines. By reducing manual input and ensuring standardization, the system aligns with corporate requirements for quality assurance and regulatory compliance. Its operational design makes it particularly useful for small to medium enterprises seeking an industrial-grade labeling solution without occupying excessive floor space. The system’s versatility ensures that a broad range of professional users can adopt it as part of their production infrastructure.
Design and Compatibility of Tabletop auto labeling machine T160LB
The auto labeling machine has been engineered with a compact tabletop design that optimizes space usage in production environments. Measuring 1100 × 1000 × 800 mm and weighing 150 kg, it provides a stable operating base that ensures consistent results during extended operation. The design supports a wide range of label sizes and product dimensions, making it compatible with various production requirements. The mechanical adjustments allow for quick repositioning of the labeling head in vertical and horizontal directions, enabling seamless changeovers between different product batches. Compatibility with standard label rolls (inner diameter 75 mm, outer diameter up to 260 mm) ensures that the machine integrates easily into existing supply chains without requiring specialized consumables. Its structural durability and integration of reliable motors and sensors make it a dependable choice for enterprises that require both long-term reliability and adaptability.
Performance and Capabilities of Tabletop auto labeling machine T160LB
The auto labeling machine delivers stable and precise labeling capabilities designed for consistent performance under industrial conditions. It maintains a labeling accuracy of ±1 mm, which ensures that each product meets standardized requirements for identification and traceability. The step motor drive system provides reliable movement control, reducing the risk of slippage or misalignment. The machine’s labeling speed of 30 to 80 pcs/min supports medium to high-volume production environments, aligning with the operational needs of modern enterprises. In addition, the system’s adjustable parameters allow companies to customize operation for different product and label sizes without compromising accuracy. The robust construction ensures minimal vibration during operation, thereby protecting label placement consistency. The overall capability of the equipment ensures that it can sustain long-term operational use while maintaining consistent labeling results across large-scale production runs.
Safety and Durability of Tabletop auto labeling machine T160LB
The auto labeling machine is built with safety and durability as primary considerations. Operators benefit from emergency stop functions and protective measures integrated into the system to prevent accidents during operation. The machine requires grounding to prevent electrical risks, and only trained personnel are authorized to operate the system. Its heavy-duty structure ensures resistance to wear during prolonged usage. The system design minimizes the need for frequent repairs by using robust components, which contributes to long service life and reduced downtime. In addition, the machine’s compact yet solid frame ensures stability even during extended production cycles. These features make it a dependable investment for companies seeking equipment that complies with industrial safety standards while ensuring sustainable long-term operation.
Adjustments and Maintenance of Tabletop auto labeling machine T160LB
The auto labeling machine incorporates multiple adjustment mechanisms that enable operators to align labeling positions precisely. Vertical, horizontal, and front-to-back adjustments of the labeling head can be made using dedicated handles. The sensor systems can be adjusted to detect both standard and transparent labels. Maintenance requirements are minimal, consisting primarily of cleaning rollers, removing label residue, and periodic inspection of sensors and fuses. The machine’s structure has been developed to allow straightforward replacement of wear parts without extended downtime. Routine inspection prevents operational interruptions and ensures labeling consistency. Enterprises benefit from reduced total cost of ownership due to the straightforward servicing and minimal maintenance intervals required for reliable functioning.
Comparison with Competitors
The auto labeling machine distinguishes itself from competing products through its balance of compact design, labeling precision, and operational stability. Unlike entry-level systems that are limited in label size range, the T160LB supports a wide spectrum of labels and product dimensions, making it suitable for diverse applications. Its step motor system ensures precision not always found in lower-tier machines. Compared to larger industrial machines, it offers a more space-efficient solution while maintaining industrial-grade performance. The combination of speed, durability, and straightforward adjustment capabilities positions this equipment as a reliable option for enterprises seeking long-term value. Its technical structure and robust build quality ensure that it remains competitive in both price and functionality.
Buy Tabletop auto labeling machine T160LB
The auto labeling machine T160LB provides a professional solution for enterprises requiring precise and efficient labeling of flat surface products. It offers a combination of speed, accuracy, and reliability that contributes to improved operational efficiency and reduced production costs. The equipment is designed to deliver long-term performance with minimal maintenance, ensuring consistent return on investment. Companies interested in acquiring this machine can place an order directly by selecting ADD TO CART for immediate purchase or request a GET OFFER for a customized quotation based on specific business requirements. With its balance of precision engineering and practical industrial application, the T160LB stands as an essential tool for businesses seeking reliable and standardized labeling solutions.
