SMITH Elektrische pompwagen met plateau S-Ride 2,6m 260cm 1500 kg

SMITH Elektrische pompwagen met plateau S-Ride 2,6m 260cm 1500 kg

3,099

Op voorraad

3,099

  • ​Betaalbare Elektrische pompwagen met plateau en zijarmen & onderhoudsarm
  • Vorkmaat: 570*1150mm – voor EURO-pallet
  • Ergonomisch– zeer stabiel​1
  • Laadvermogen 1500 kg of 1,5t
  • 12 maanden garantie.
  • Hefhoogte: 260cm of 2600mm
  • Gemakkelijk te gebruiken en eenvoudig aan te passen​
  • Indicator accuniveau
  • Elektrische pompwagen met plateau + 2 accu’s (2*12V/120AH) + lader (24V/10A, Europese standaard)

Prijs:

Beschrijving

7SMITH Electric stacker with stand 1500kg 260cmSMITH Electric Stacker with stand S-Ride 2,6m 260cm 1500 kg

The Ergonomic and robust design of this electric pallet stacker with stand SMITH S-Ride helps provide maximum operator comfort during usage. A strong and robust stand will give the operator comfort and ease of use since the operator doesn’t need to walk with the stacker. This will speed up the work process and make employees happier. On both sides, electric stacker SMITH S-ride is equipped with sidearms, which make the drive convenient and safe. It is easy to operate and its two-handed operation system allows a precise lifting process. The Electric stacker SMITH S-Ride can be used for lifting and transporting heavy objects and pallets. With constant moving and lifting the battery takes around 6 hours. Charging is fast. It is assembled in China, has parts from Japan, Germany, Taiwan. If we don’t have service in your country and something is wrong in the warranty period we will hire a local team and pay for the repair. Components are standard and can be easily replaced. It uses a car accumulator, which can be cheaply replaced if needed. Most spare parts are available. The electric stacker is an affordable, lightweight, and powerful forklift to have around. This electric pallet stacker with a paddle is designed to be used with two hands and it is the most stable in this category of electric pallet stackers with stand. The electric stacker S-Ride weighs 690 kg, therefore is very robust and stable and can lift various objects and pallets. When max lowered it measure 1877 mm in height.  The electric stacker has two motors. One is for lifting and one is for driving. The lifting motor has the power of 24V/2,2KW, and the driving motor has the power of 24V/0.75KW. This electric stacker comes with 2 batteries and a charger. Batteries are very powerful with a capacity of 2×12V/120Ah which allows you to use an electric stacker for several hours without recharging. Recharging is very fast, therefore, you will not waste time waiting. The maneuverability and ease of operation with this electric stacker will allow you to use it for lifting pallets or objects from the ground and putting them on the shelf or in the truck or for unloading the truck. Electric stacker SMITH S-Ride is also designed in a way that can be easily operated and doesn’t use a lot of space. It has a 12-month warranty and service is available in the European Union.

What is the price of an electric stacker with padel SMITH S-Ride?

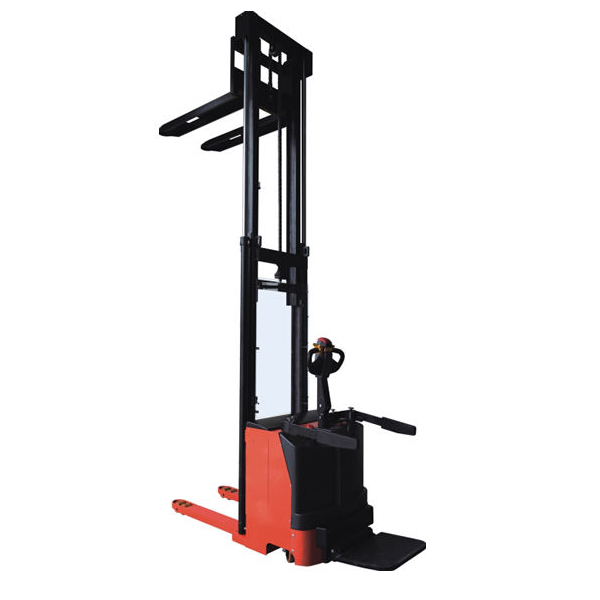

7SMITH Electric stacker with padel 1500kg 260cm cheap

Electric stacker with stand SMITH is one of the cheapest electric stackers out there. However, the price of the electric stacker does not reflect on the quality. Despite it being affordable, the electric stacker with padel and side arms is made out of high-quality materials and it has implemented the latest lifting and driving technology. You can find the limited price of the electric pallet stacker above. The electric stacker has a 12-month warranty and comes with two batteries 2*12V/120AH.

Electric stackers use the battery as the power source through controlling DC motor on the driving wheel to fulfill the function of walking, DC motor convert the high-speed low torque to low-speed high torque through the gearbox, being implemented by driving wheel. The speed of walking is controlled by the accelerator.

Advantages of e stacker with stand SMITH:

  • Robust and stable electric stacker with stand and side arms which make lifting and driving operations fast and safe. Employees can safely stand on the padel and drive on it while working.
  • Stand and side are foldable and can be easily removed or added.
  • Through it is an electric stacker with stand it is equipped with a high-power and high-performance lifting pump station, which ensures good lifting.
  • The turtle speed switch on the handle makes low-speed control more precise.
  • German imported waterproof micro-switches are built for usage in cold, damp, dusty, and other harsh environments.
  • YONGCI motor drive system is small in size, lightweight, low loss, and highly efficient.

7SMITH Electric stacker with stand 1500kg 260cmWhere to use e-stacker with padel SMITH?

Electric stacker with stand SMITH is a very affordable electric forklift, its value is easily reflected when it is introduced into the packaging or transporting processes of any industry. It eases into the workflow and helps double, even sometimes triple the efficiency of its users. With the electric stacker manual heavy lifting is eliminated from the workspace. This reduces any occurrence of accidents in the factory or warehouse. Since the source of power is electricity, the electric stacker is very clean and doesn’t produce and toxic gas, therefore it can be used indoors. There is no need for worry of tripping over wires and the need for cable management. The electric stacker uses a battery and comes with two batteries as stated earlier. This allows a seamless workflow. Since recharging is very fast. there is no need for stopping the workflow to charge the battery. This electric pallet stacker has been built to be very stable and robust, it can easily transport and lift heavy objects in different shapes.

Electric stacker SMITH is widely used in the paper, aluminum, textile, steel, logistics, farm, chemical, metal industries. Electric pallet stacker with stand SMITH S-Ride has a very robust body and it is easy to use. The electric stacker moves fast, however, it can be easily controlled and maneuvered. The electric stacker is beautiful and strong. With the electric pallet stacker, you will be able to automate operations and speed uplifting and transporting activities. The electric pallet stacker SMITH has a high degree of automation, simple operation and it is easy to understand. The body of the electric stacker is made of high-strength alloy materials and engineering plastics, which are durable in use. The electric stacker is easy to move and can be used for various sizes of packages.



Specs of Electric Stacker with platform SMITH S-Ride

ModelSMITH Elektrische pompwagen met plateau S-Ride 2,6m 260cm 1500 kg
Vermogenseenheidelektrisch
Werkingvoetganger
Nominaal trekgewicht Q1500kg
Lastzwaartepunt c600mm
Asmidden tot vorkvlak x695mm
Wielbasis y1148mm
Servicegewicht met batterij690kg
Type wielenpolyurethaan
Maat aandrijfwiel ΦΦ210×70Φ×b(mm)
Bearing wheel size ΦΦ80×70Φ×b(mm)
Extra wielen (afmetingen​)Φ115×55Φ×b(mm)
Wielen, aantal voor/achter (x = aangedreven)1,4/2
Spoorbreedte646b10 (mm)
Spoorbreedte390/515b11 (mm)
Hoogte mast, neergelaten1877mm
Lift2600mm
Hoogte mast, uitgeschoven3137h4 (mm)
Totale hoogte (met handvat)1040/1415h14 (mm)
Verlaagde hoogte86h13 (mm)
Totale lengte1890l1 (mm)
Lengte tot vorkvlak740l2 (mm)
Totale breedte808
Afmetingen vork60/180/1150mm
Breedte vorken570b5 (mm)
Min. bodemvrijheid26m2 (mm)
Gangpadbreedte met pallet 1000 x 1200 over vorken2110Ast (mm)
Gangpadbreedte met pallet 800 x 1200 langs vorken2160Ast (mm)
Min. draaicirkel1455Wa (mm)
Rijssnelheid, beladen/onbeladen4,2/4,5km/h
Hijssnelheid met/zonder last90/130mm/s
Daalsnelheid, met/zonder last105/100mm/s
Daalsnelheid, met/zonder last3/6mm/s
Bedrijfsremelektromagnetisch
Aandrijfmotor, 60 minuten rating0.75kW
Hefmotorvermogen bij S3 15%2,2kW
Accuspanning/nominale capaciteit2×12/120V/Ah
Batterijgewicht (± 5%)2×35kg
Type rijbesturingDC
Geluidsniveau bij het oor van de bestuurder≤70dB(A)



Platform Pallet Stacker SMITH lifting curve

7SMITH Electric Stand-on Stacker S-Ride 260cm 360cm 1500 kg



7SMITH Electric stacker with stand 1500kg 260cmHoe gebruikt u een Elektrische pompwagen met plateau SMITH S-Ride?

Met een enkele draai van een sleutel start u de elektrische pompwagen. Op het handvat zitten twee schakelaars. De een beweegt de vorken op en neer en de ander beweegt de elektrische pompwagen. Als u de pallet oppakt, rijdt u eenvoudig de elektrische pompwagen onder de pallet en tilt u deze een klein stukje op. Gebruik vervolgens een andere schakelaar en rijd de elektrische pompwagen naar de gewenste locatie. Druk op de gewenste locatie op de schakelaar om de pallet op te tillen en til de pallet op naar de gewenste hoogte en verplaats de elektrische pompwagen naar voren zodat de pallet in de vrachtwagen of het schap staat. Laat vervolgens de vorken zakken zodat de pallet de grond raakt en verplaats de pompwagen naar buiten. Hetzelfde proces kan worden gevolgd voor het optillen van andere objecten. Als objecten niet in een vorm zijn die kan worden opgetild, plaats het object dan op de pallet en zet het vast, zodat het stabiel staat. Met 690kg heeft de Elektrische pompwagen met plateau SMITH S-Ride een zeer sterke hef- en rijmotor. Hij kan een last heffen die 1500 kg, 2,6 m of 2600 mm hoog weegt. De rijsnelheid ligt rond de 4 km per uur. De Elektrische pompwagen met plateau weegt ongeveer 690 kg en heeft twee accu’s met een capaciteit van 12V/120AH. De Elektrische pompwagen met plateau SMITH is gebouwd om lang mee te gaan en bestand te zijn tegen gebruik in fabrieken of magazijnen. De Elektrische pompwagen met plateau heeft een garantie van één jaar en wordt onderhouden in de Europese Unie.

Hoe gebruikt u het besturingssysteem op de Elektrische pompwagen met plateau SMITH S-Ride?

1) Draai de sleutel naar de “aan”-positie om de Elektrische pompwagen met plateau te starten. Verplaats de hendel naar het operatiegebied.
2) Draai de gasknop tot de gewenste richting of achteruit.
3) U regelt de snelheid door de verplaatsingsknop te bewegen totdat u de gewenste snelheid hebt bereikt.
4) Rijd het voertuig voorzichtig naar de bestemming. U kunt de snelheid aanpassen via de hoofdregelaar.

Het remsysteem van Elektrische pompwagen met plateau S-ride:

Remprestaties zijn afhankelijk van de wegomstandigheden en de belading van het voertuig​。
De pauzefunctie kan op de volgende manier worden geactiveerd​:
1 Door de hoofdregelaar naar positie ‘0’ te verplaatsen, zal de Elektrische pompwagen met plateau remmen totdat deze stopt.
2 Beweeg de rijschakelaar in de tegenovergestelde richting, de Elektrische pompwagen met plateau stopt met bewegen in de ene richting en begint in de tegenovergestelde richting te bewegen.
3 Elektrische pompwagen met plateau zal remmen als de hendel op en neer wordt bewogen naar het remgebied (“B”). Elektrische pompwagen met plateau zal remmen als de hendel op en neer wordt bewogen naar het remgebied (“B”).
4 Belly switch – is een noodknop. Als de knop wordt geactiveerd, kan dit voorkomen dat de bediener bekneld en gewond raakt.



Video Elektrische pompwagen met plateau SMITH:

Extra informatie

Gewicht870 kg
